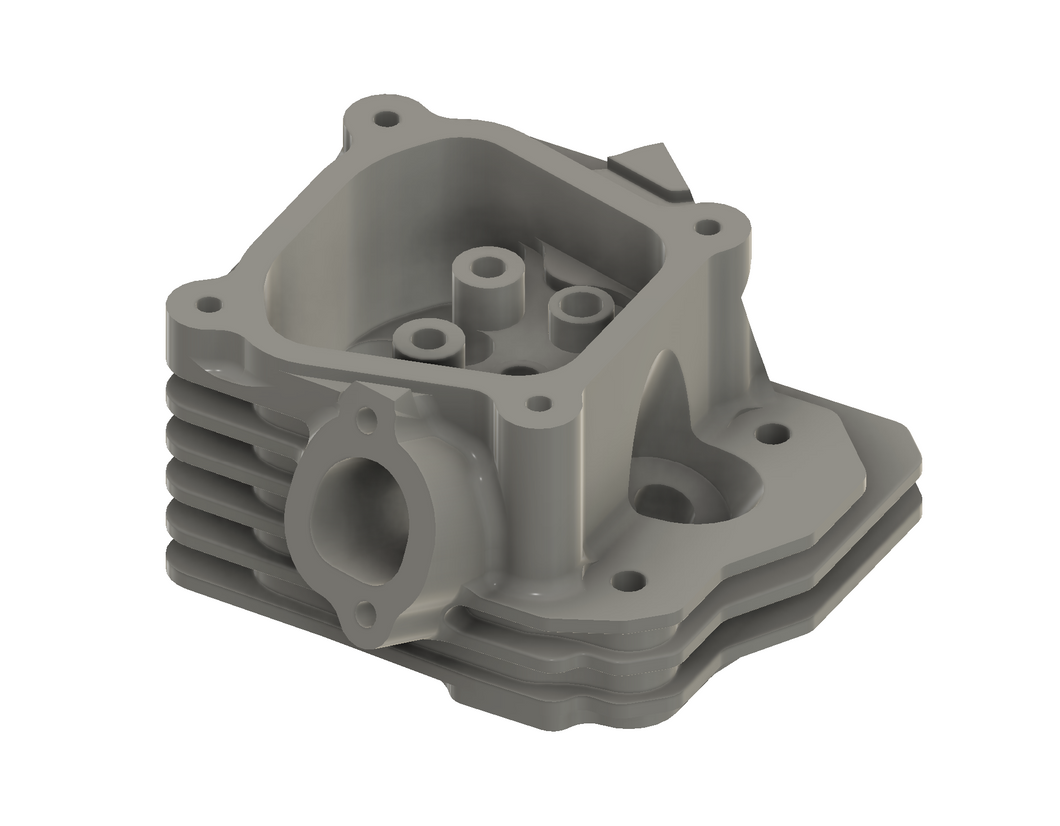

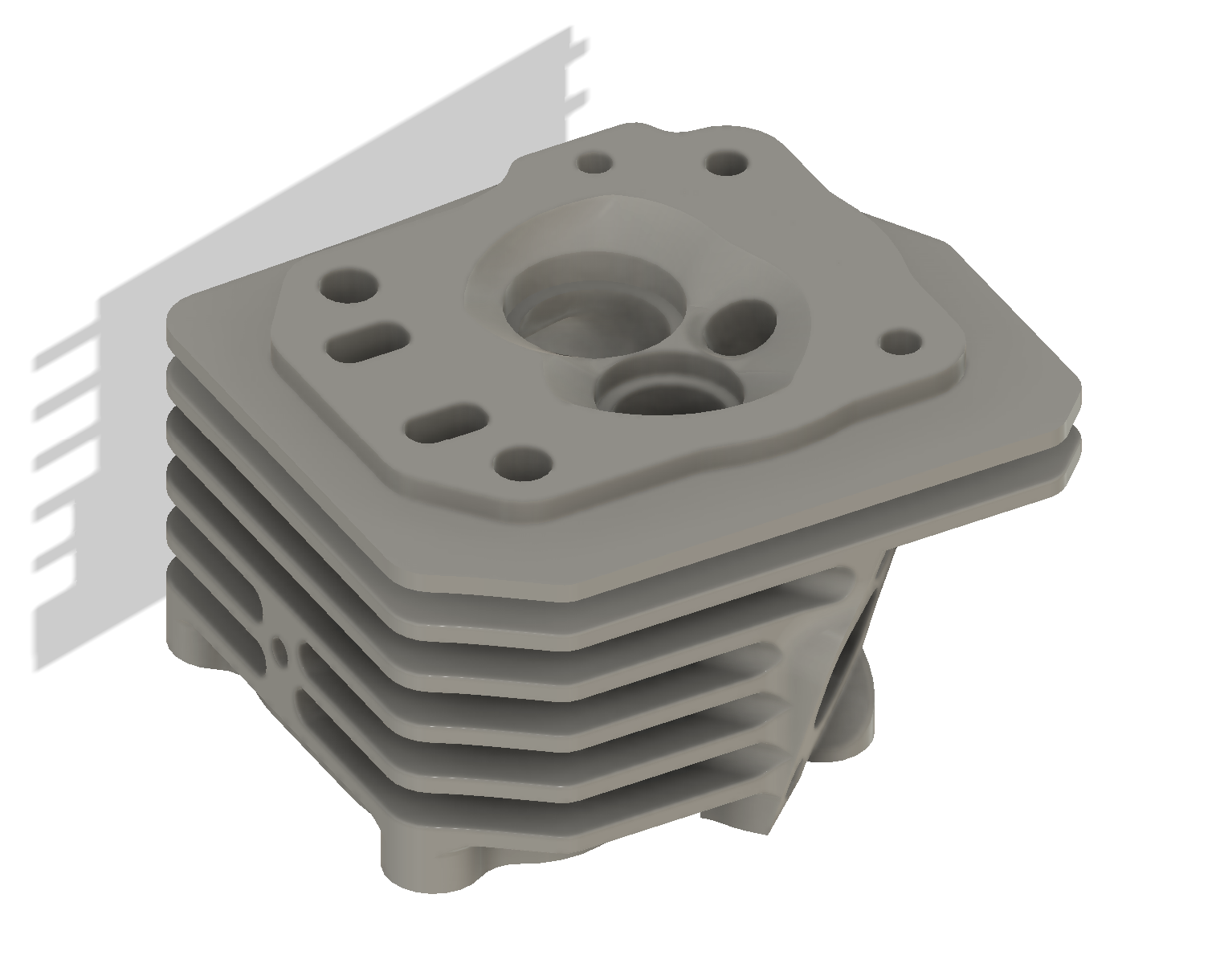

-Billet cylinder head for small block gx200 clone engine-
-32mm intake and 25mm exhaust.
-Optimized flow and velocity while bolting
onto 212cc+ engines.
-14cc combustion chamber
- Supports .400" lift with no modifications.
Accepts all stock height components,
(meaning you can reused your intake
or exhaust parts). Works well with
aftermarket roller rockets. Aftermarket
pushrods may be required based on Cam selection.
-Springs and retainers are required.
-MADE IN USA-
Valves : Intake 32mm, Exhaust 25mm (5.5mm stem)
Valve Length: Stock +.150"
Spring Installed height .880"
Flow:
.050" - 20cfm
.100" - 40cfm
.150" - 63cfm
.200" - 82.5cfm
.250" - 93.5cfm
.300" - 99cfm
.350" - 103cfm
.400" - 107cfm
.450" - 109cfm (valves do not support this much lift )
.500" - 112cfm (valves do not support this much lift )
